BS40

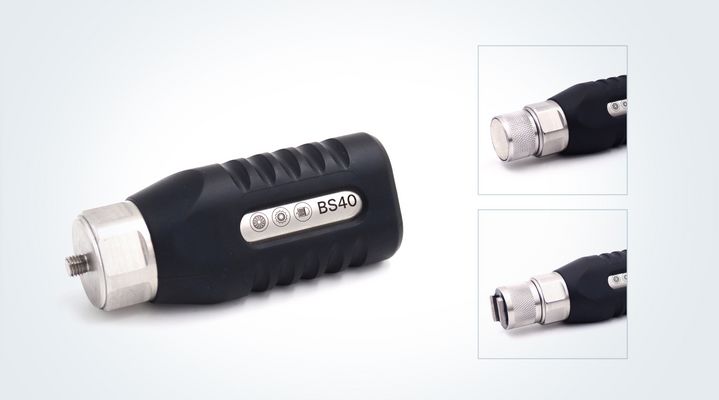

Broadband Structure-Borne Sound Sensor

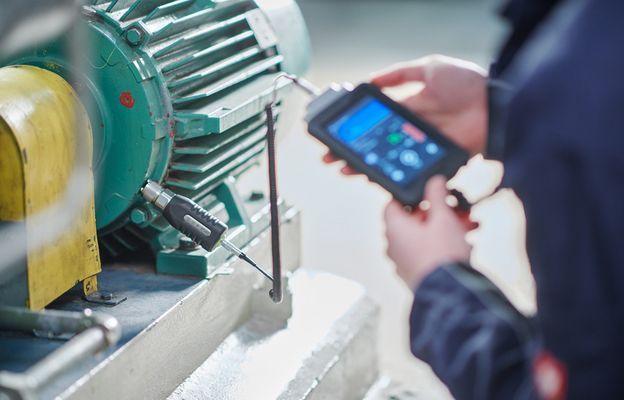

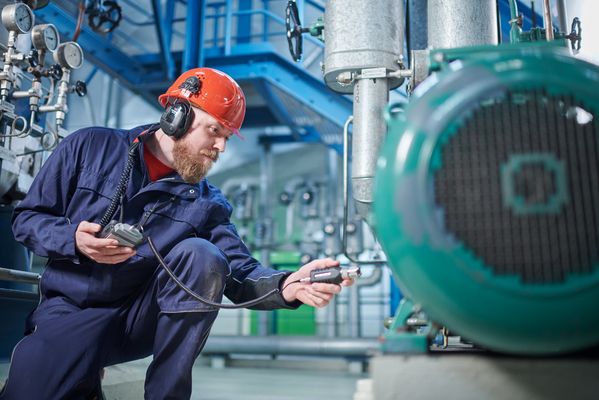

The broadband structure-borne sound sensor BS40 is used in conjunction with the portable SONAPHONE ultrasonic testing device in the following fields of application:
- Condition monitoring of rotating parts of machines
- Monitoring and diagnostics of failures (e.g. lubrication status) and defects at roller bearings.
Advantages at a Glance
- Perfect for confined spaces (only half the size of BS20)
- Frequency range: 15 kHz to 100 kHz
- Hardware filter high-pass (< 1 kHz) for more flexibility in machine diagnostics
- Robust, stainless steel housing (laser welded)
- Improved EMC stability incl. shielded cable
- Maximum flexibility due to standard threaded pin, e.g. magnets or adhesive pads with internal thread ¼"-28 UNF
- Proven transducer principle retained in the form of piezocomposite
The BS40 structure-borne sound sensor has been specially designed for the following tasks:
- Condition monitoring of rotating parts of machines
- Monitoring and diagnostics of failures (e.g. lubrication status) and defects at roller bearings.
Technical Data

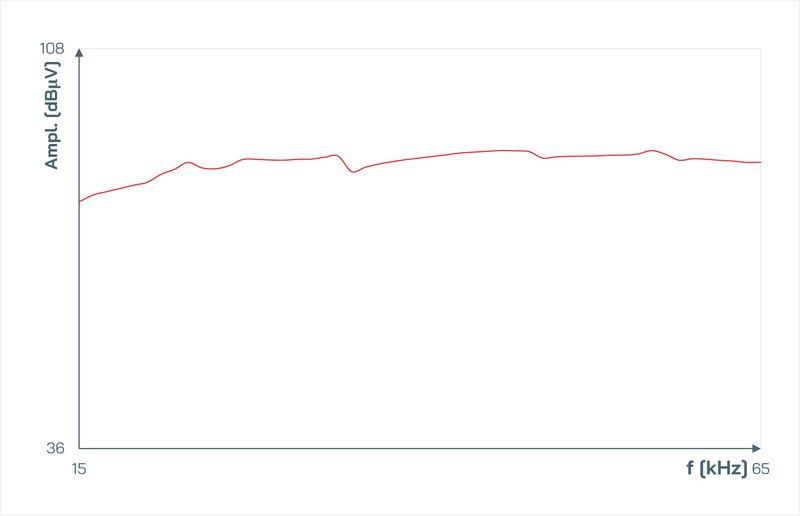

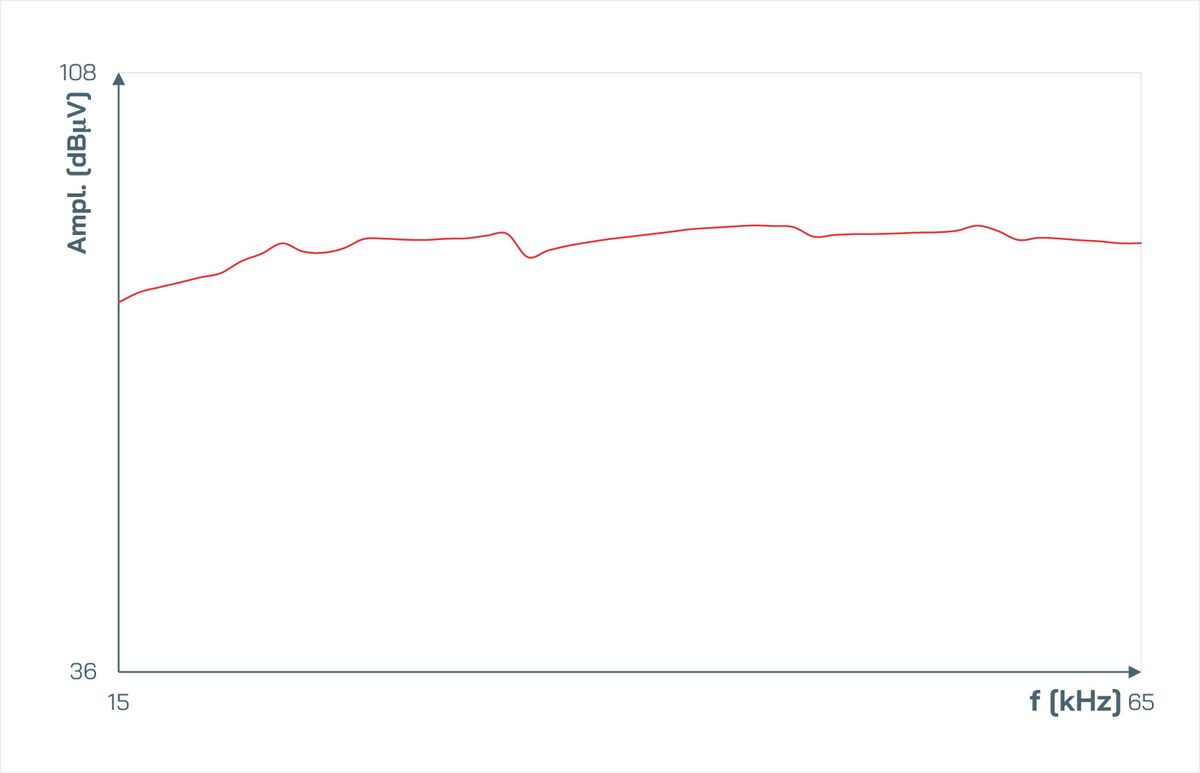

Frequency response at excitation 20 m/s²
General
| Design | Structure-Borne Sound |
|---|---|
| Frequency Range | 150 Hz … 100 kHz |
| Power Supply and Communication | Cable connection with the SONAPHONE: LEMO connector (160 cm, see SONAPHONE scope of delivery) |
| Weight | 210 g (without accessories) |
| Materials | Stainless steel, rubber (NBR) |
Ambient Conditions
| Operating Temperature | -10 °C … +65 °C |
|---|---|
| Storage Temperature | -20 °C … +65 °C |
| Protection Type | IP50 |
| Standards and Guidelines | EMC Directive 2014/30/EU, WEEE Directive 2012/19/EU, RoHS Directive 2011/65/EU |
| Optional Accessories | Multi-purpose magnetic base |
Accessories
| Flat Surface Magnetic Base | 300 01 0102 |
|---|---|
| Multi-Purpose Magnetic Base | 300 01 0103 |
| Mounting Pad (1 pce.) | 300 01 0104 |
| SONAPHONE sensor cable (coiled cable with connectors LEMO 0B) | 800 01 0049 |
