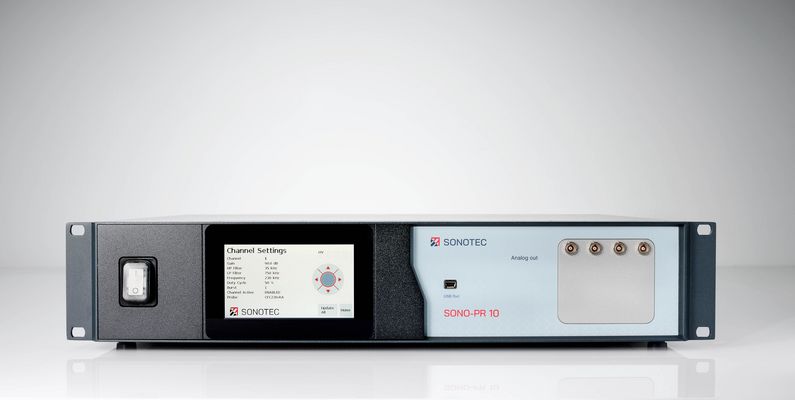

Ultrasonic pulser receiver for air-coupled testing for NDT

General

Advantages

Affordable introduction to air-coupled ultrasound

Wide range of applications

High flexibility of the device

Simple system, not automated

Large spectrum in the air-coupled ultrasound range

No PC necessary

Applications

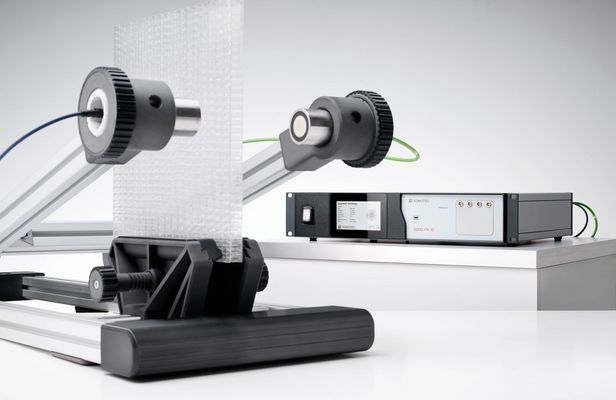

Non-contact ultrasonic testing for defect detection and material characterization on different materials

Suitable for materials that are difficult to test, such as foams, metals, plastics, and ceramic materials

Enables building material testing of bricks, composite panels, concrete, and wood

Honeycomb structures with different core and cover layers

Components

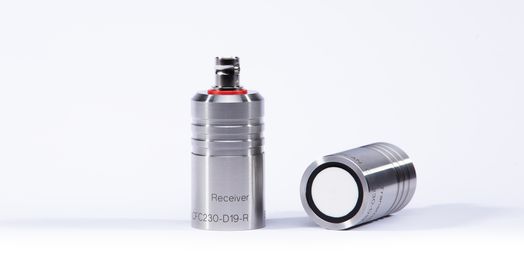

Maximum resolution and highest sensitivity due to state-of-the-art SONOTEC piezo-composite technology incl. element focusing

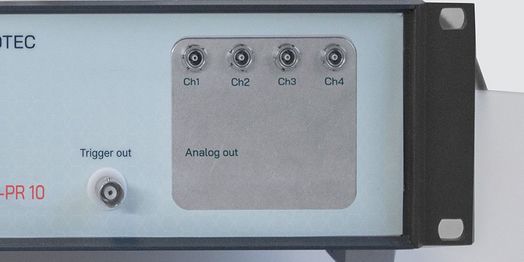

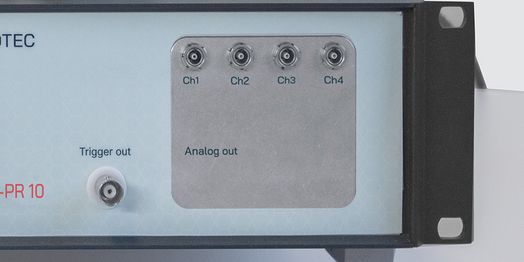

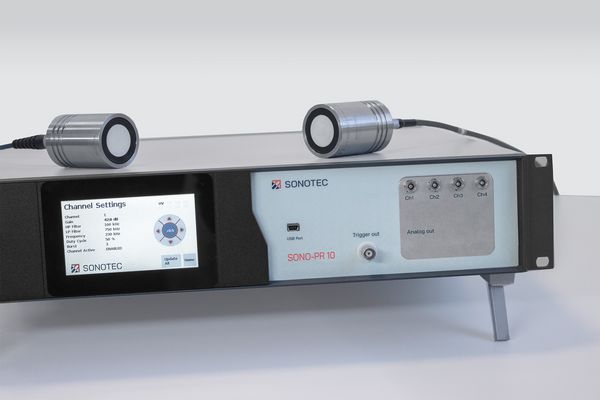

SONO-PR 10 detail view of channels and display

Up to 4 independent transmitter and receiver channels with configurable square-wave burst pulser and low-noise pre-amplifiers

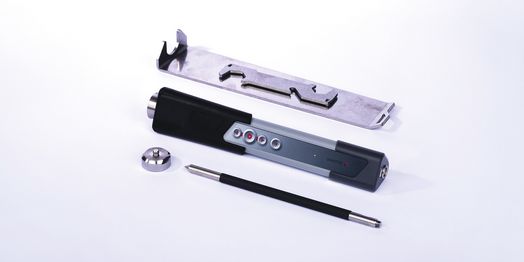

BS20 Ultrasonic sensor for preventive maintenance and ultrasonic testing

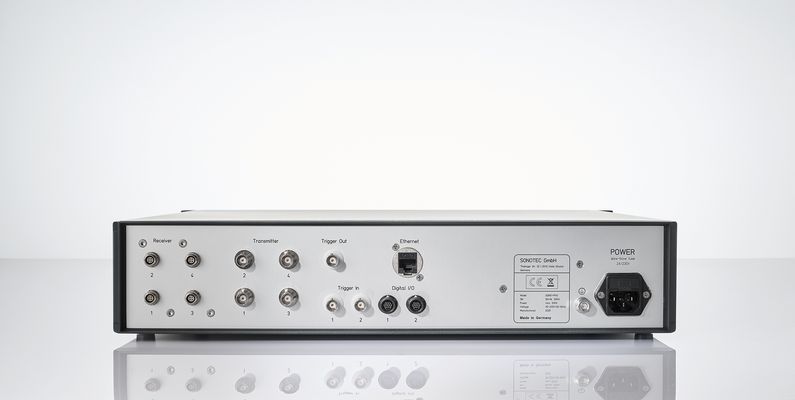

Digital interface to extend the functionality

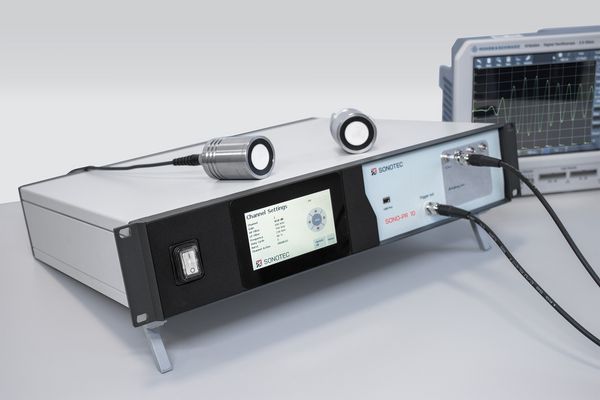

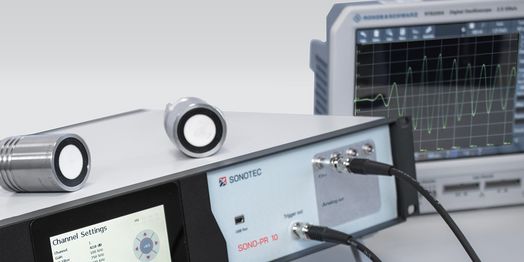

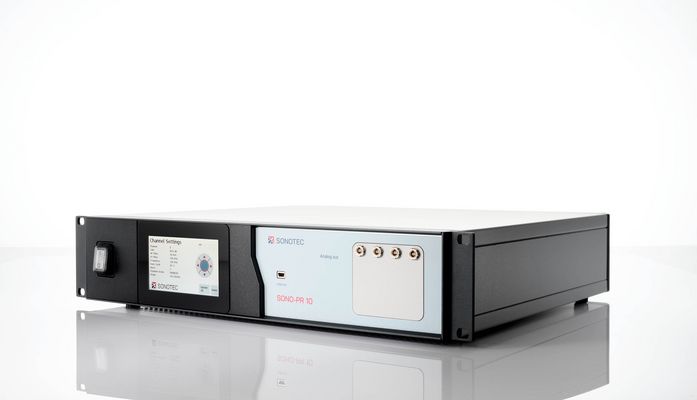

SONO-PR 10 pulser receiver with oscilloscope

Operation and evaluation directly on the device via integrated touch panel – no additional computer required

Technical Data

General Data

19‘‘ Unit consisting of	Ultrasonic transmitter, ultrasonic receiver, analog/digital converter
Operating Temperature	5 °C to 40 °C
Network Interface	1 Gbit LAN
Protection Class	IP20

A/D Converter

Resolution	14 Bit
Scan Rate	Up to 50 MS/s

Pulser

Number of Channels	1 to 4
Pulse Height	10 V to 500 V
Frequency Range	40 kHz to 10 MHz
Type	Square wave burst (configurable width for each pulse)

Receiver

Number of Channels	1 to 4
Frequency Range	35kHz to 15 MHz
Gain with integrated CFC preamplifier	20 dB to 140 dB, 0.5 dB increment
Gain with standard external preamplifier	0 dB to 120 dB, 0.5 dB increment
Noise	1 nV / √Hz

Interfaces

Inputs	Multi-channel: digital and analog
Outputs	Multi-channel: digital
